With the introduction of Stripe terminal for iOS in October ‘19, the release of POS build 2.2.5 introduced the ability for Ticketure customers to leverage the more stable implementation of Card Present processing as compared to the Miura’s which was currently the only hardware available to process card-present transactions through Stripe.
The following outlines the setup and configuration needed to leverage Stripe Terminal for Ticketure.
Devices and Configuration Links
Stripe Terminal currently supports 3 different options for hardware. The Verifone P400, the M2 Reader mobile solution, and the BBPOS WisePOS E (details below). Video instructions here.
Verifone P400 | |
|
End of Life October 1st, 2024 The Verifone P400 is a robust device that many customers will be comfortable using and can be customized with branding on the home screen to match that of the customer. It supports chip, swipe, contactless, Google, and Apple Pay options as well as Debit PIN capture. |
M2 Reader | |
|

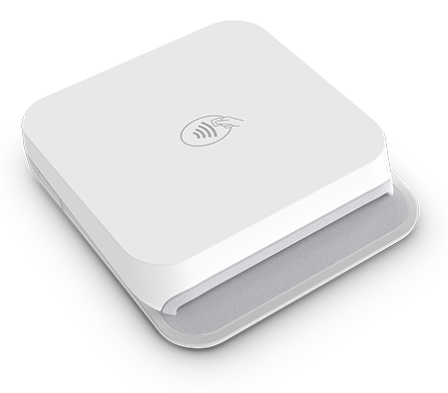

The M2 Reader is a rechargeable mobile card reader which will be used for Mobile POS but also can be used for POS stations who want a smaller footprint and do not require any PIN capture capabilities. They can be shipped with double-sided sticky tape which enables sticking directly to a scanner or back of an iPad for secure processing or an optional weighted dock for a convenient countertop checkout experience. While docked it can be used with a charging cable to keep the reader fully charged. |
BBPOS WisePOS E | |
|

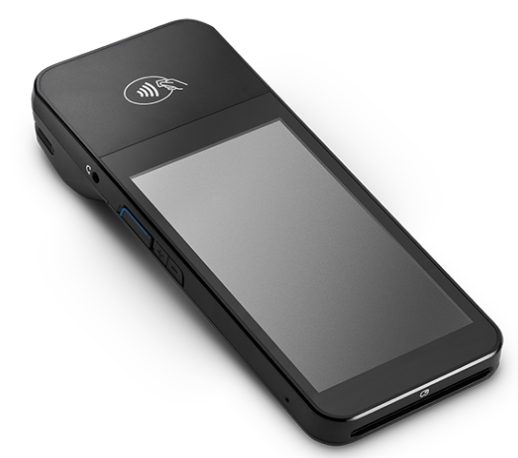

The BBPOS WisePOS E is a 5" IPS display device with a capacitive touch screen smart reader solution. The BBPOS WisePOS E will be the non-mobile hardware choice for POS stations leveraging Ticketure. It supports chip, swipe, contactless, Google, and Apple Pay options as well as Debit PIN capture. Also included is the dock which provides hardwired ethernet connectivity and keeps your smart reader fully charged for all-day use. |
Stripe Terminal Hardware Setup
M2 Reader
The M2 reader is delivered ready to begin processing transactions with little to no setup involved. Skip to the Ticketure Setup set below.
IMPORTANT:
Do Not Pair the Chipper with Bluetooth of the IOS device before associating it with Ticketure.Verifone P400
IMPORTANT:
Stripe will move the Verifone P400 reader to end of life status on October 1, 2024. This means that the reader will no longer be able to process transactions or receive customer support or critical software updates after this date.
The Verifone P400 is delivered with the ability to provision all encryption and updates automatically from the web after being configured to connect to the Organization’s Stripe instance.
-

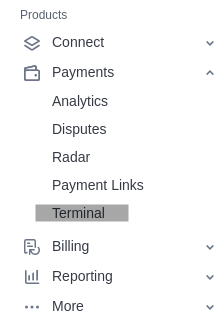

Log into the Stripe Dashboard for the Organization. In the left menu, select the option for Terminal.
-

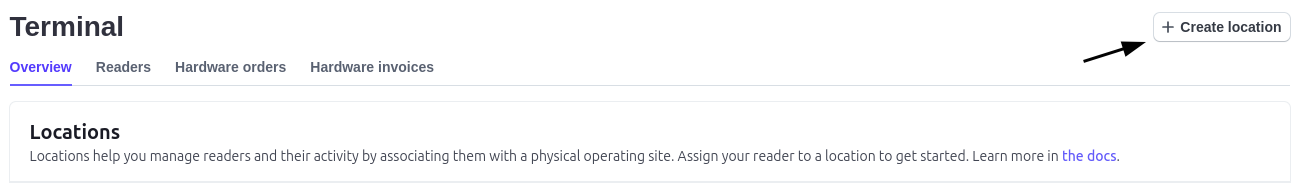

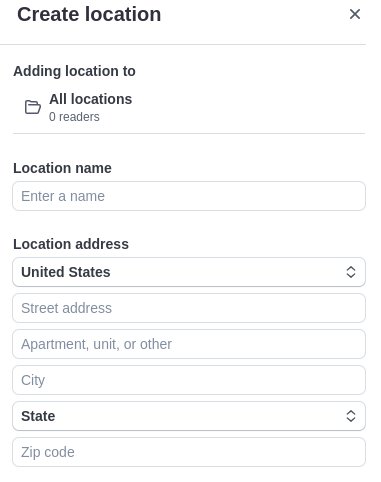

Select Locations, Click the “New” button and enter the details as to the location for the P400s.
Note:
The Ungrouped Readers category exists by default and is where any BBPOS devices will be placed, you can move devices between locations once they are configured. - Once the Location is defined, the Location details including all readers will be visible.

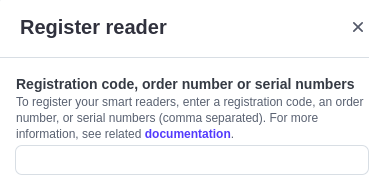

- To register a P400 for this location, select the “New” button beside the ‘Readers' panel.A ‘Register reader’ dialog will be displayed. The registration code will come from Step 5 below. The Reader label will be the location that is selected within Ticketure (ex: Window 1, Concierge 2)
Note:
The first time that the terminal device connects to the internet, it will download the latest version of the software for Stripe Terminal. After successfully applying the updates, the device will reboot. - Once the P400 has the all latest updates and is ready to be registered, you will see the Stripe Terminal Screen
- Type the following sequence on the keypad *7139 (it will be 07139 for the BBPOS WisePOS E)
The P400 will then render a ‘Register this reader’ page with a 3-word registration code separated by hyphens.
This registration code is to be entered in the ‘Registration code’ text box as seen in the Stripe Device Registration - Step 4 above
Success!
Upon successful entering of the registration code, the Stripe Terminal will indicate successful registration,
and in Stripe Terminal, the Location will now show the newly defined P400 device.
Repeat this process for all P400s, creating as many Locations as needed.
BBPOS WisePOS E
The BBPOS WisePOS E is delivered with the ability to provision all encryption and updates automatically from the web after being configured to connect to the Organization’s Stripe instance.
-
Log into the Stripe Dashboard for the Organization. In the left menu, select the option for Terminal.
-
Select Locations, Click the “New” button and enter the details as to the location for the P400s.
Note:
The Ungrouped Readers category exists by default and is where any BBPOS devices will be placed, you can move devices between locations once they are configured. - Once the Location is defined, the Location details including all readers will be visible.
- To register a BBPOS WisePOS E for this location, select the “New” button beside the ‘Readers' panel.A ‘Register reader’ dialog will be displayed. The registration code will come from Step 5 below. The Reader label will be the location that is selected within Ticketure (ex: Window 1, Concierge 2)
Note:
The first time that the terminal device connects to the internet, it will download the latest version of the software for Stripe Terminal. After successfully applying the updates, the device will reboot.
Ticketure Setup
Enable Stripe Hardware in CMS (Done by TixTrack)
-
To enable Stripe Hardware within a Tenant, from the Portal menu bar, select “Settings”
-
From the Left menu, select Configuration
-
Select the “Add Option” Button and select the “Stripe Hardware” option from the list and set the 2nd dropdown to 1 (default).
Choose “Add Option” and this completes the setup in CMS. This should be completed by Client Services as part of onboarding.
Configuration in POS
After Stripe Hardware is enabled via the configuration, the POS will now be able to look for Stripe Hardware.
- Once logged into the POS, attempt a Card transaction from the POS.
This will enable the Stripe Hardware selection screens:
Click the Connect button
Select the Terminal device you are connecting
Upon selecting the Terminal device to connect with, you will be presented either the BBPOS Chipper Serial Number as found on the underside of the device or the P400 name provided during Step 4 of the P400 configuration
- Select the Terminal from the list you want to connect to
Important:
The iOS device will present a popup asking to access your location. This is optional, but suggest selecting the “Allow While Using the App” option. - A brief Green bar will appear on the selected Terminal once selected and then Ticketure will presented with a ‘Proceed on the Card Reader’ message.
- From the Card Reader, the user will be presented the directions to process their card.
- Customer will present their card/digital wallet and the P400 will beep once the proper information has been read and result in 1 of the 2 following messages to the customer.
Success Declined
In the event of a card being declined, the details shown to the cashier will provide insight into what the cause of the issue was and what was received back from Stripe when the transaction was attempted.
Card Failure with Details
Terminal Communication Failure
